Multi-Function Dashboard Cluster Gauge Flush-Mount for OEM

This 140mm combination dashboard cluster is manufactured as a direct OEM replacement for 1960s through 1980s Toyota Land Cruiser FJ40, FJ45, and BJ40 models. The unit integrates five essential instrument functions into a single housing, matching original mounting points and wiring interfaces for simplified installation. Designed for classic off-road vehicle restoration and replacement, the cluster uses a metal housing with a black dial face and red indicator needles. It supports 12V vehicle electrical systems, with each unit undergoing factory calibration before shipment.

8310060180 Dashboard Cluster Technical Specifications

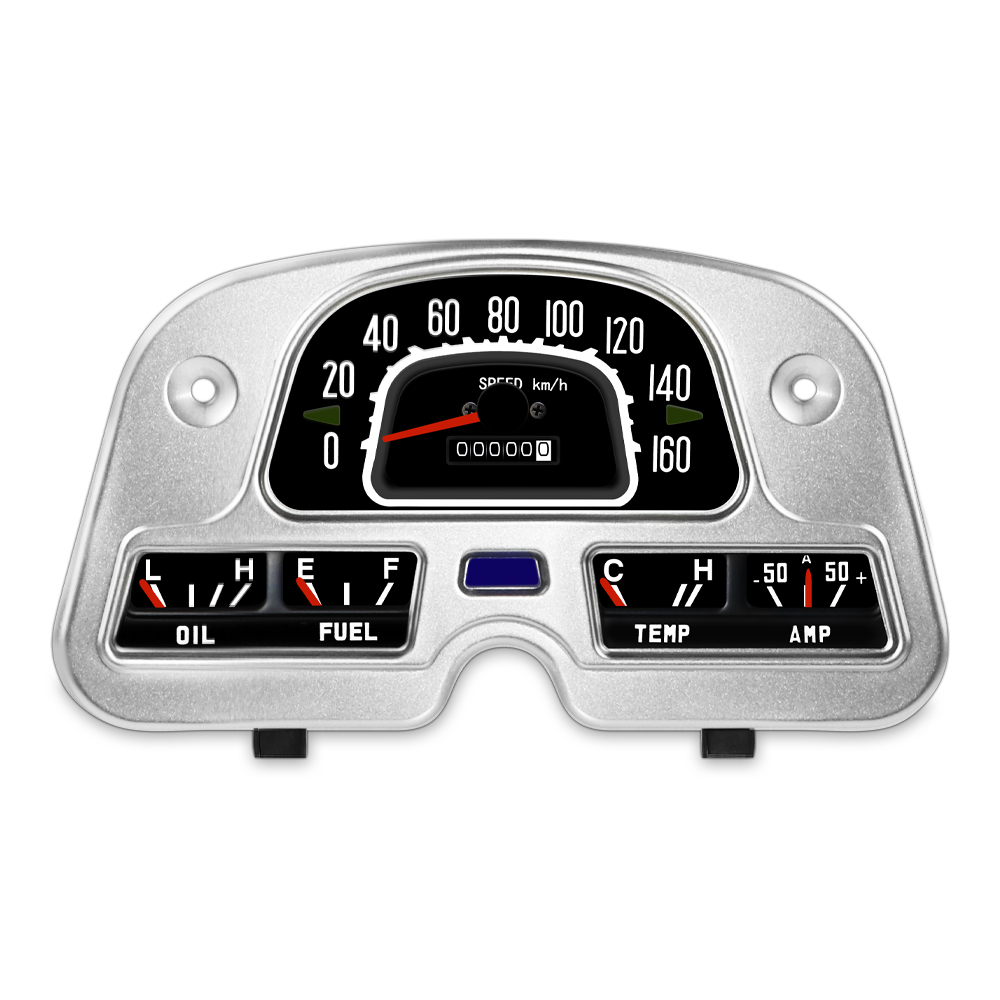

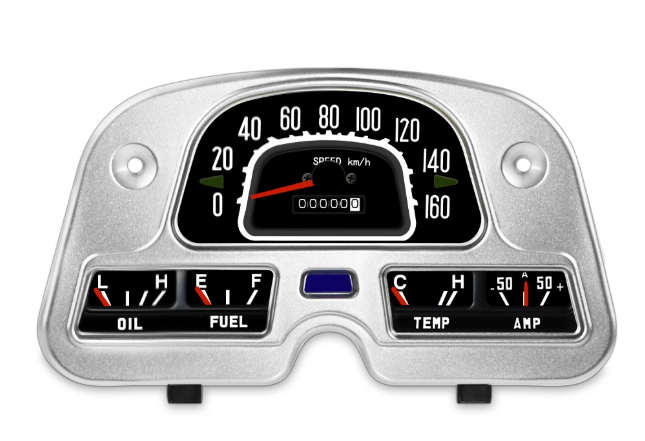

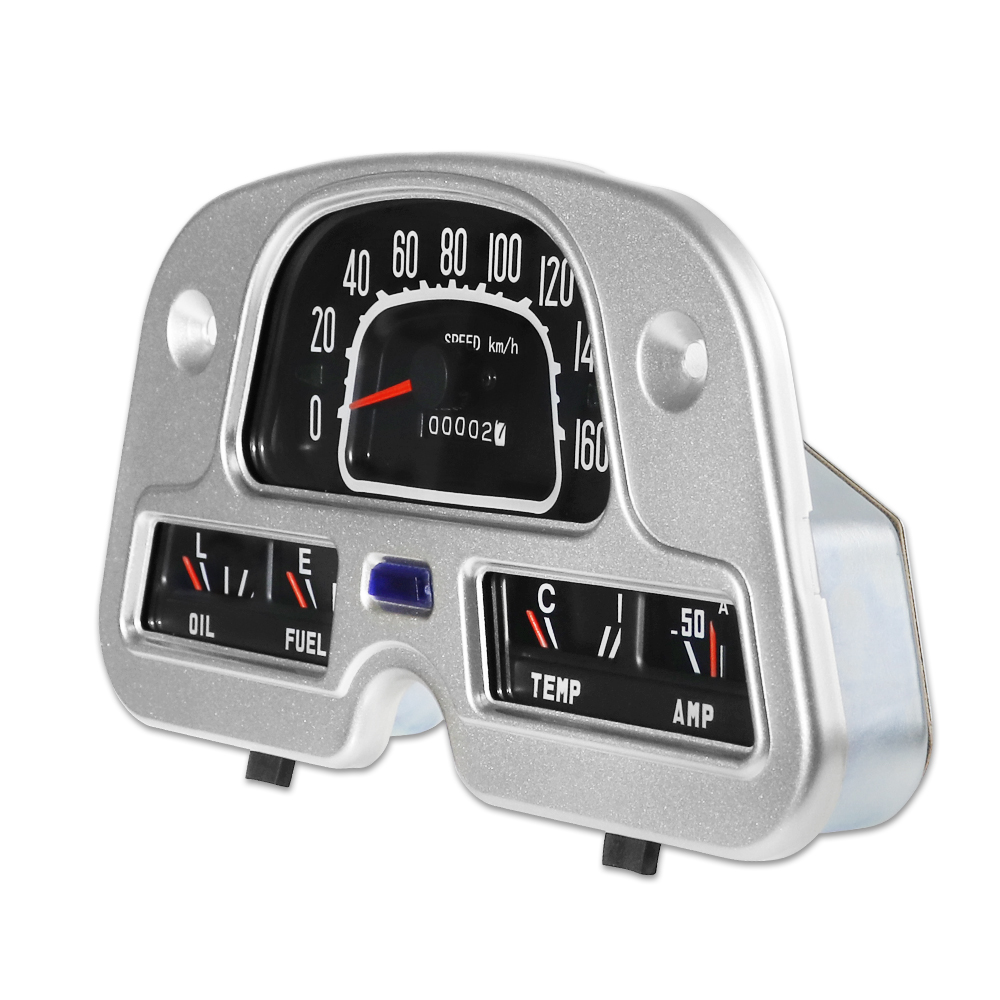

5-in-1 Land Cruiser Instrument Panel Core Functions

Integrated Gauge Set Configuration

The cluster combines five monitoring functions in one assembly:

Speedometer: Measures vehicle speed from 0-160km/h

Oil pressure gauge: Monitors engine oil pressure from 0-10bar

Fuel level gauge: Indicates remaining fuel level in the vehicle tank

Water temperature gauge: Displays engine coolant temperature

Ammeter: Shows battery charging and discharging status

This integrated design eliminates the need for separate gauge installations, restoring the original dashboard layout for classic Land Cruiser models.

Measurement Accuracy and Calibration

Each cluster undergoes three rounds of pointer calibration during production to achieve ±3% measurement accuracy across all gauges. The speedometer is calibrated to match original vehicle speed signal ratios, while the oil pressure, temperature, and fuel gauges are calibrated to match original sending unit resistance ranges. This calibration process reduces the need for post-installation adjustment for restoration projects.

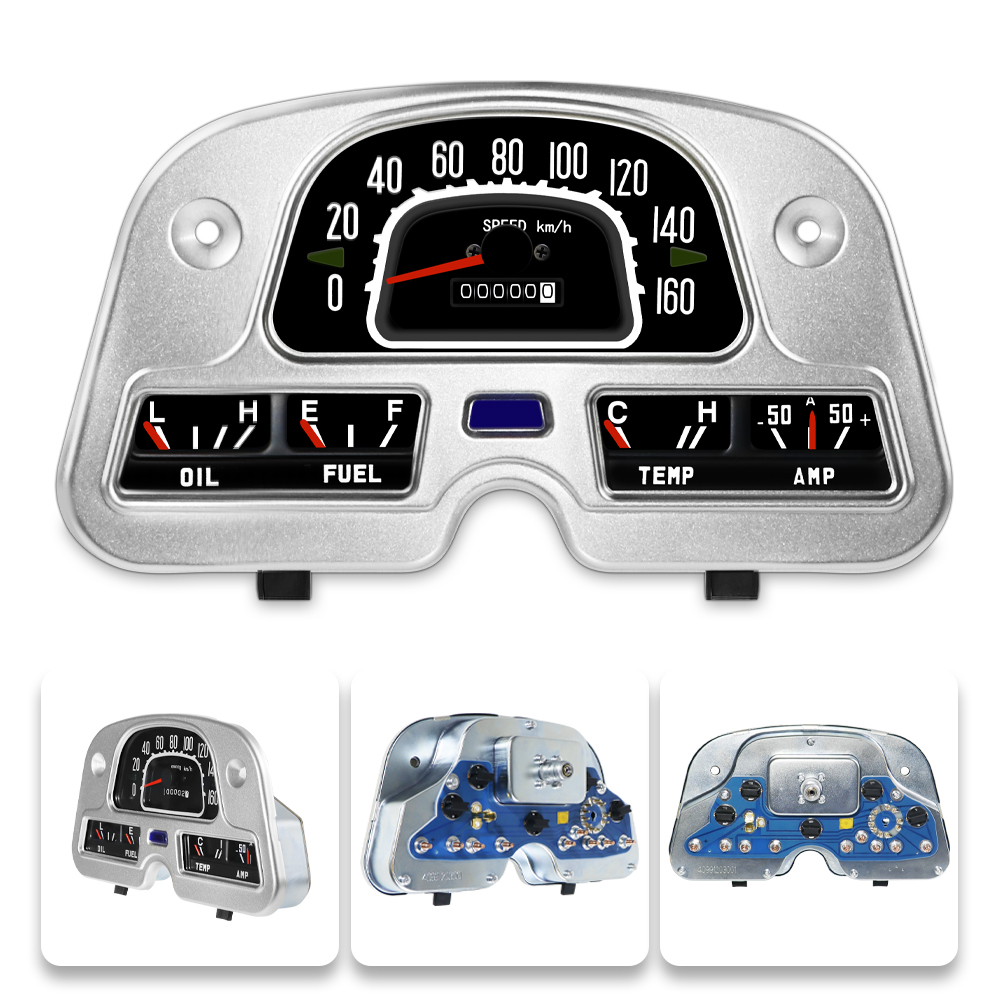

Electrical System Compatibility

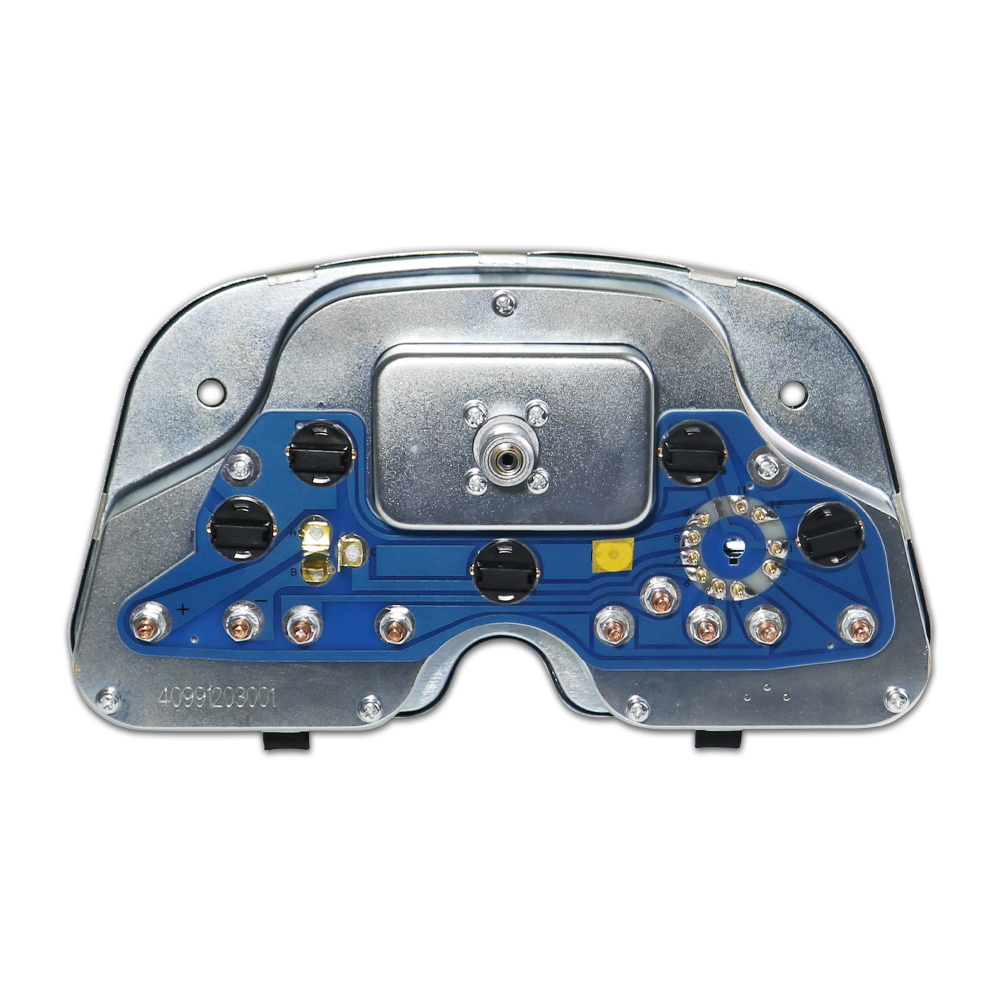

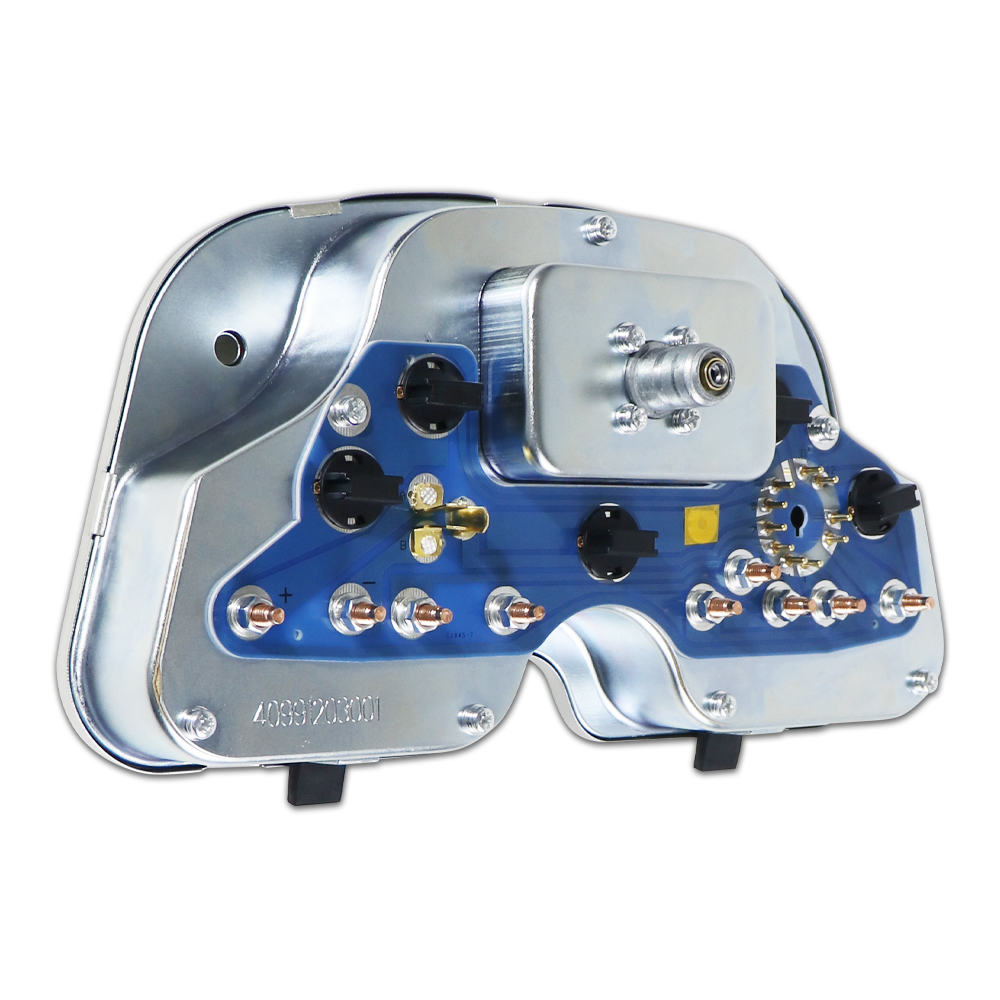

The circuit board is designed for 8-16V operating range, supporting 12V vehicle electrical systems used in FJ series Land Cruisers. Each circuit board undergoes 96 hours of voltage fluctuation aging testing before assembly to verify performance under variable electrical conditions. The cluster includes original-style wiring connectors to match factory harness interfaces.

Visibility and Backlight Performance

The black dial face with bold red indicator needles provides readability under direct sunlight conditions. Integrated LED backlighting illuminates all gauges for night operation, with LED components rated for ≥50,000 hours of continuous use. The backlight color and brightness are matched to original equipment specifications for a period-correct appearance in restored vehicles.

OEM Replacement Dashboard Cluster Installation Features

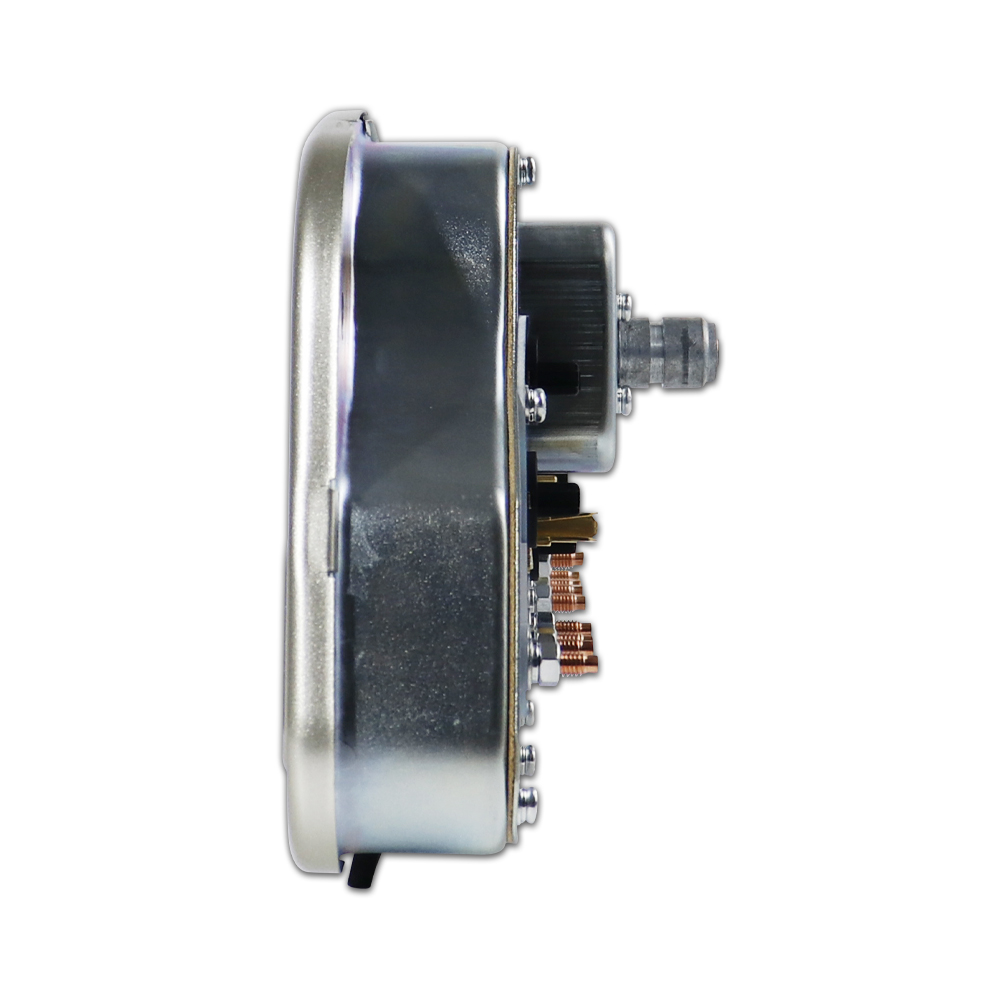

This cluster is engineered for direct fitment with original FJ40, FJ45, and BJ40 dashboard mounting points. The housing dimensions and mounting hole positions match original equipment specifications, requiring no dashboard modification for installation. The wiring connectors are configured to plug directly into original vehicle wiring harnesses, eliminating the need for wire splicing or circuit modification. Standard installation can be completed by a single technician using basic hand tools, reducing labor time for restoration shops and repair facilities.

Vintage Off-Road Speedometer Cluster Durability Validation

Each finished cluster undergoes standardized environmental testing before shipment:

-30℃-75℃ temperature cycle testing to verify operation across extreme temperature ranges

Continuous vibration testing to simulate off-road driving conditions

Circuit board aging testing under variable voltage conditions

Full functional testing of all gauges and backlight system

The metal housing provides protection against dust and minor impacts encountered in off-road environments. This testing protocol supports stable operation in the varied conditions encountered during both on-road and off-road use.

CBM155 Combination Gauge Application Scenarios for Business Buyers

This instrument cluster serves multiple commercial use cases:

Classic Land Cruiser restoration workshops: Use as a direct replacement unit during full vehicle restoration projects to maintain original dashboard appearance

Vintage off-road parts suppliers: Stock this cluster as a standard replacement part for FJ series Land Cruiser owners and repair facilities

Independent auto repair shops: Install as a replacement unit for vehicles with damaged or non-functional original instrument clusters

Off-road outfitters: Include in restoration and upgrade packages for Land Cruiser owners preparing vehicles for long-distance travel

Classic vehicle parts wholesalers: Distribute to regional parts suppliers serving the vintage off-road vehicle market

FAQ

Which specific vehicle models does this cluster fit?

This cluster is designed as a direct replacement for 1960s through 1980s Toyota Land Cruiser FJ40, FJ45, and BJ40 models with 12V electrical systems. It is not compatible with 24V FJ variants or later model Land Cruisers.

Does this require modification to the original vehicle wiring?

No, this cluster uses connectors designed to interface directly with original FJ series wiring harnesses. Installation does not require wire cutting, splicing, or dashboard modification when installed on compatible models.

What testing procedures are performed before shipment?

Each unit undergoes three rounds of pointer calibration, 96 hours of circuit board aging, temperature cycle testing, vibration testing, and full functional verification before packaging and shipment.

What is the warranty coverage for commercial orders?

We provide a 12-month warranty against manufacturing defects from the date of delivery. Warranty coverage applies to defects in materials and workmanship; it does not cover damage from improper installation, misuse, or vehicle electrical system faults.

Can you supply bulk orders for restoration workshops?

Yes, we support bulk orders for restoration businesses and parts distributors. Contact our commercial sales team for volume pricing, lead time information, and custom packaging options for larger orders.
