VTM125B

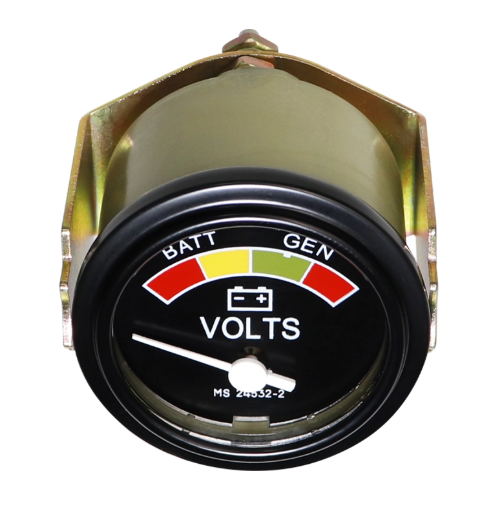

This 52mm mechanical voltmeter is manufactured to military OE specifications with the NSN part number 6625-01-180-6542. It is designed as a replacement component for Humvee M998 vehicles, and also fits M35 and M939 series military trucks. The gauge monitors battery and generator voltage with a reading accuracy of ±0.2V, serving military vehicle repair distributors and government fleet contractors. The unit features a round dial with color-coded BATT and GEN zones, and a thickened housing with IP54 dustproof rating. Two alternative models, DY206B and DY203D, share the same installation dimensions as VTM125B, providing flexible options for commercial parts procurement.
The voltmeter adopts a mechanical movement structure, with voltage reading error controlled within ±0.2V across its measuring range. During product development, each design undergoes over 500 vibration and temperature cycle tests to validate structural stability. The unit also completes 2000 hours of continuous power-on aging testing, with pointer movement remaining smooth without jamming after the test.

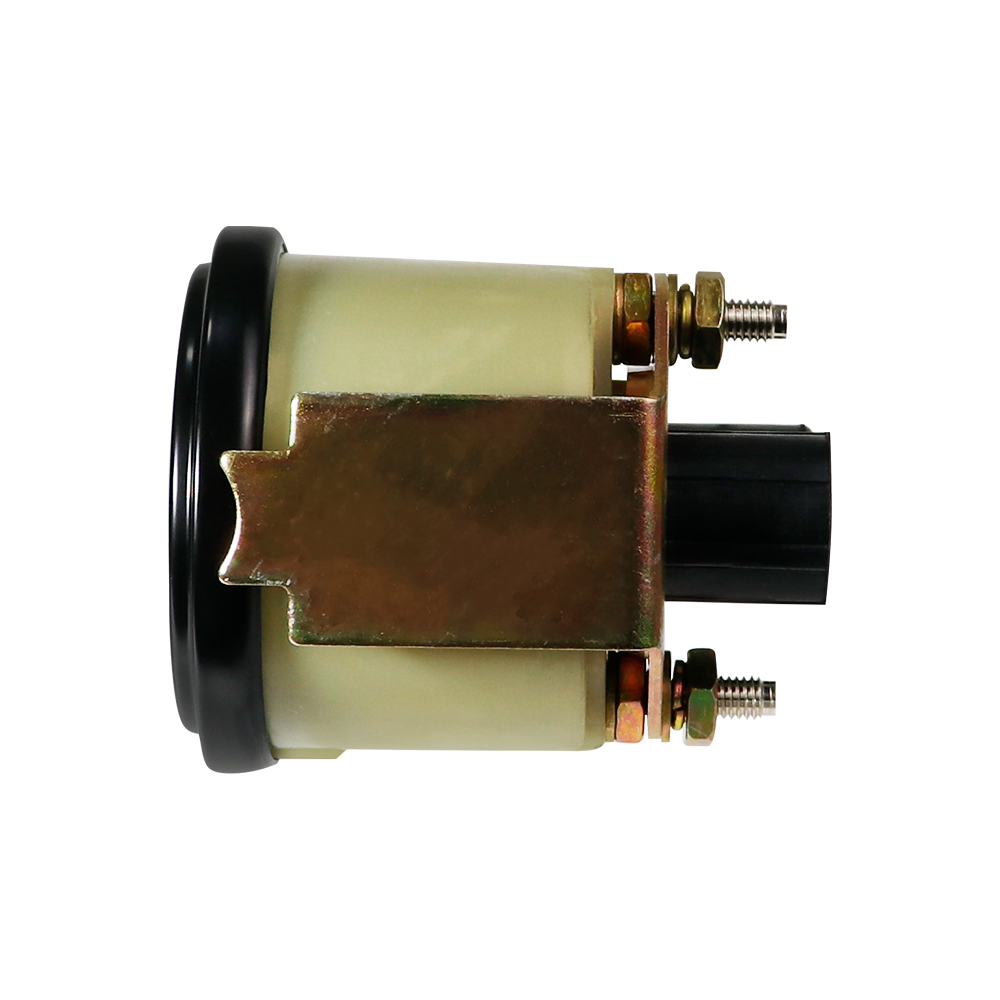

The outer casing is made of iron with a thickened structure, reaching IP54 dustproof level. This construction provides resistance to mud, dust and moisture in field operating environments. The metal terminals receive anti-corrosion treatment, and the pointer shaft uses wear-resistant materials to support long-term operation.

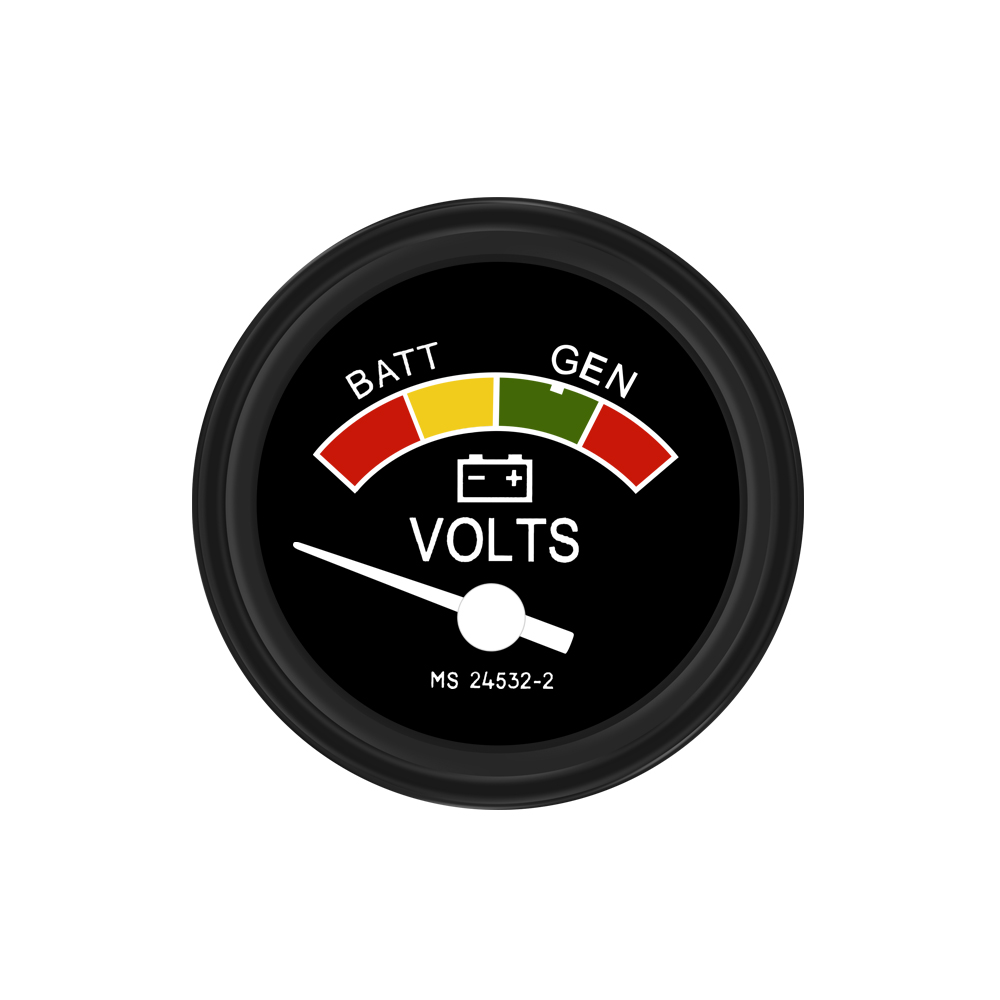

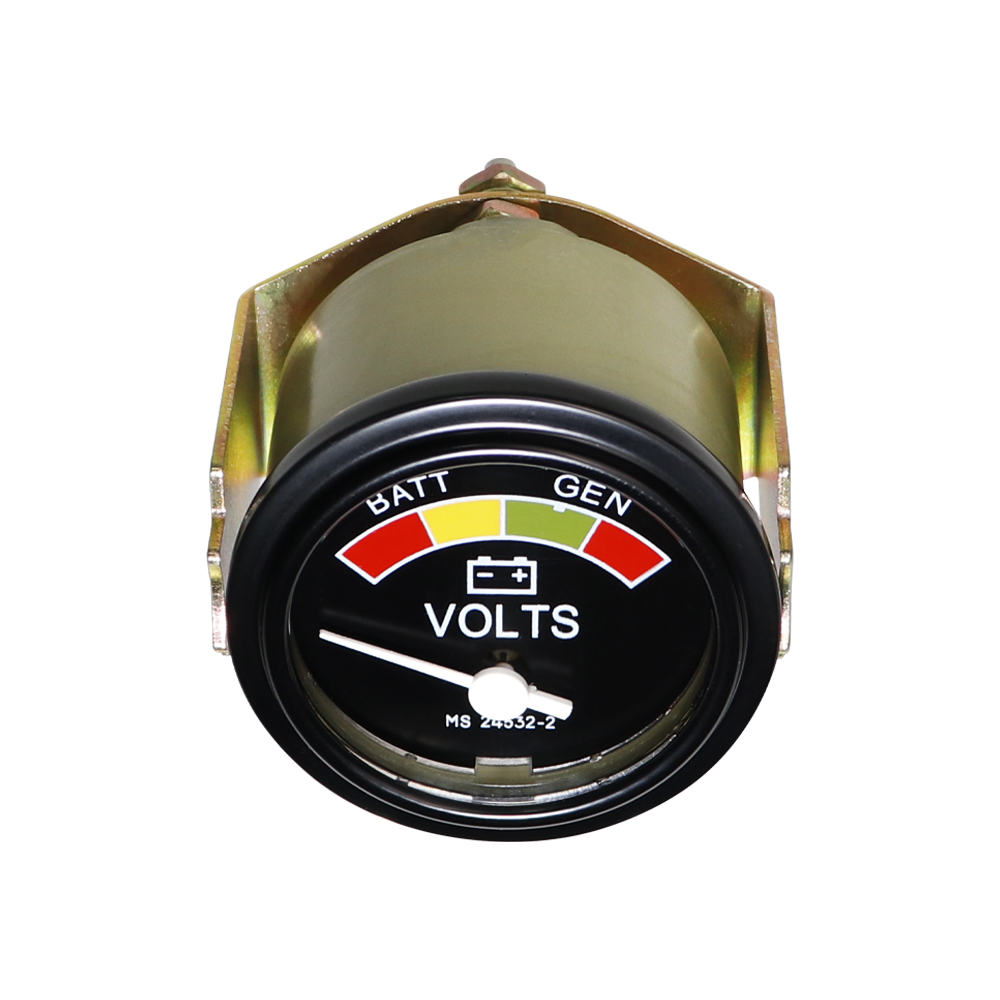

The 52mm round dial is divided into color-coded BATT and GEN areas. This layout allows vehicle operators to identify voltage readings with reduced visual scanning time, supporting operation during off-road driving conditions.
The voltmeter is engineered to match the installation specifications of Humvee M998 vehicles, and is also compatible with M35 and M939 series military trucks. It serves as a direct replacement part for the original factory voltage gauge on these models.

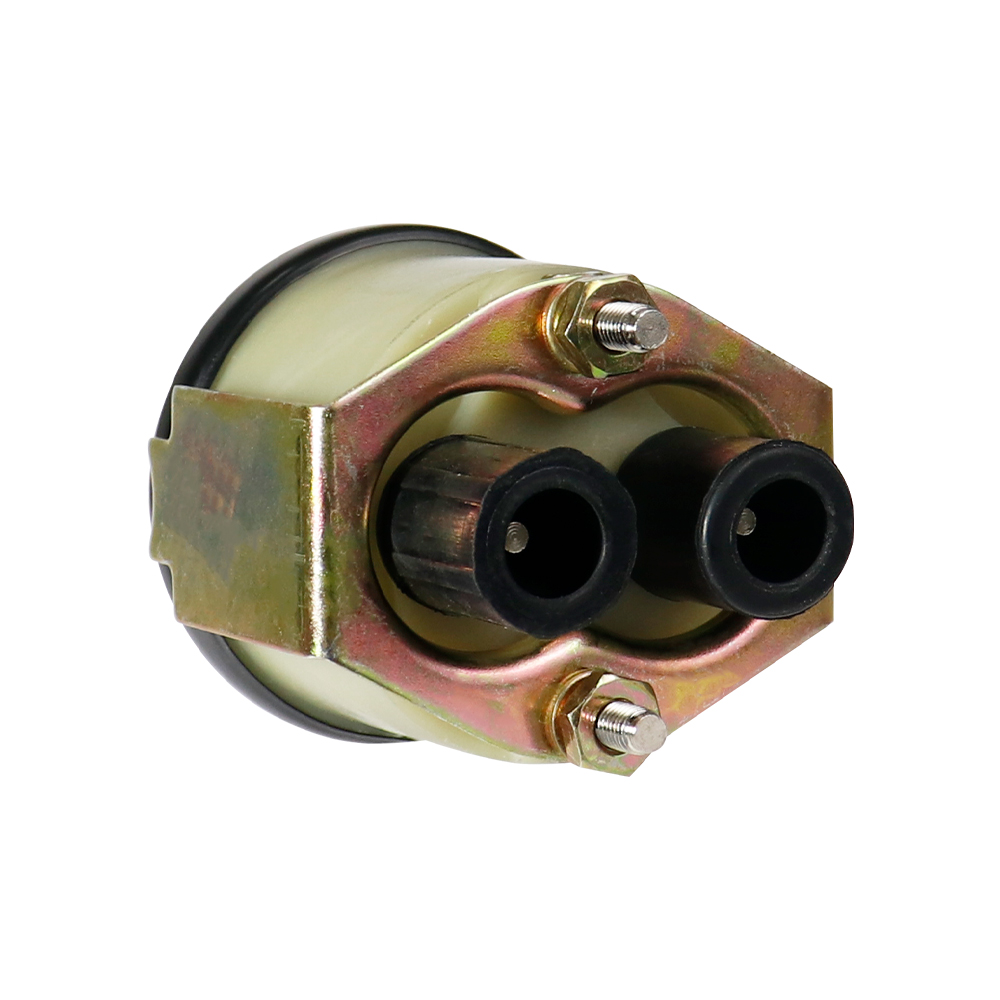

The gauge uses a standard 52mm mounting size, matching the dashboard cutout dimensions of target vehicles. It is equipped with a double-terminal connector that aligns with original wiring harness dimensions. No additional modification is required for installation, which can shorten vehicle maintenance downtime for repair operations.
Attribute | Details | Attribute | Details |
|---|---|---|---|
Condition | New | Purpose | for replace/repair |
OE NO. | 6625-01-180-6542 | Place of Origin | Zhejiang, China |
Size | 52mm(2.05in) | Brand Name | MrGauge |
Model Number | VTM125B | Warranty | 12 Months |
Car Make | for Humvee M-Series | Product Name | Voltage |
Brand | MrGauge | Material | Iron |
Quality | 100% Tested | Certificate | ISO9001 |
OEM NO | 6625-01-180-6542 | Screen Size | 52mm |
Application | Voltage Gauge | Fitment | for Humvee M-Series |
Package | Neutral Packing |
Attribute | Details | Attribute | Details |
|---|---|---|---|
Selling Units | Single item | Single package size | 6×6×8 cm |
Single gross weight | 0.200 kg | ||
The product uses neutral packaging, with maintained bulk stock available for wholesale orders. Short lead times are supported for global military vehicle repair distributors and commercial fleet operators. Each unit undergoes outgoing inspection with complete test records before shipment. | |||
This voltmeter serves as a direct OEM replacement part for M-series military vehicles. It provides continuous voltage monitoring for battery and generator systems, supporting early identification of voltage anomalies during field missions.
The gauge suits various military heavy trucks and tactical vehicles. Its color-coded dial and vibration-resistant structure support voltage reading in muddy, dusty and high-vibration off-road driving conditions.
Auto repair garages and military equipment maintenance centers can stock this voltmeter as a standard spare part for electrical system overhaul of aging military vehicle fleets.
The gauge can also be installed on military engineering machinery and auxiliary power units. Its dustproof housing supports operation under long-term outdoor harsh climate conditions.
This voltmeter is designed for Humvee M998 vehicles, and is also compatible with M35 and M939 series military trucks, matching the original installation size of these models.
Each unit undergoes outgoing functional testing. The product design has passed over 500 vibration and temperature cycle tests, as well as 2000 hours of continuous power-on aging testing.
The product comes with a 12-month warranty against manufacturing defects. Technical support is available for procurement clients after delivery.

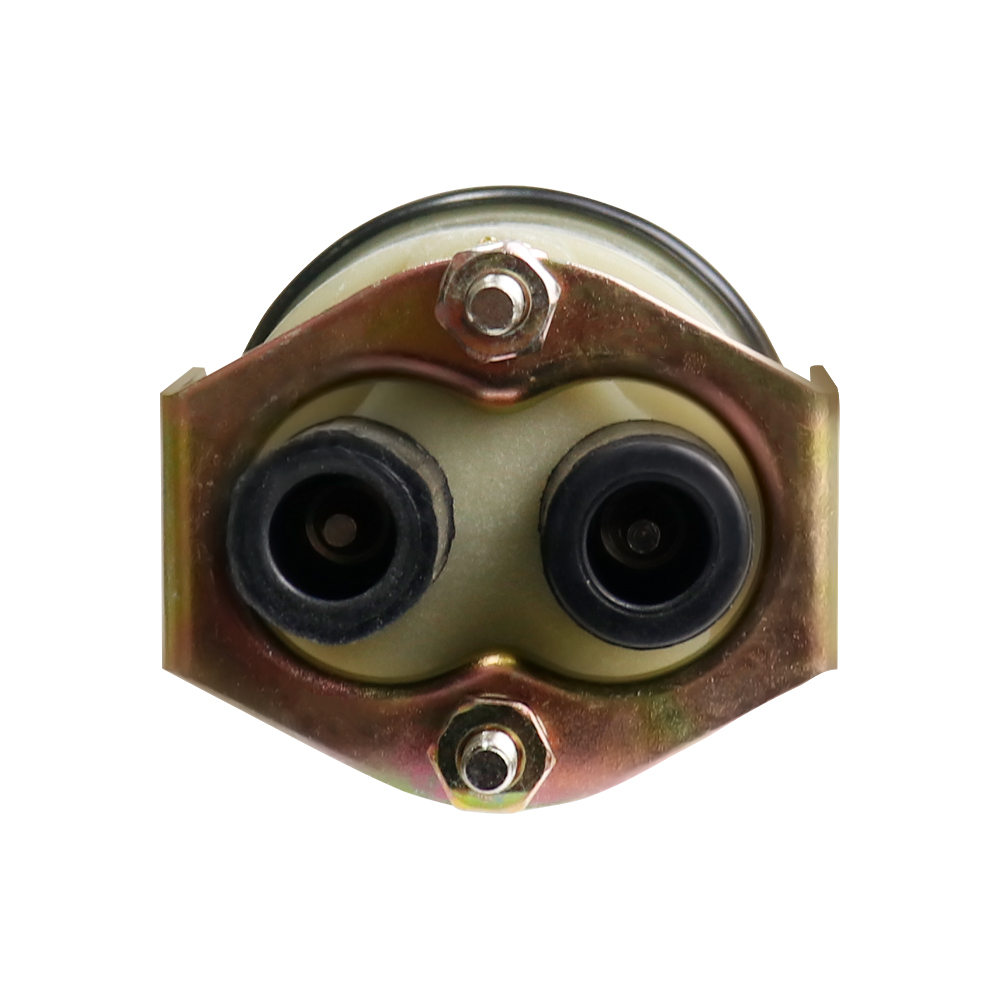

No additional modification is required. The double-terminal connector aligns with original wiring harness dimensions, supporting direct installation onto compatible vehicle models.
